Ladle car turntable

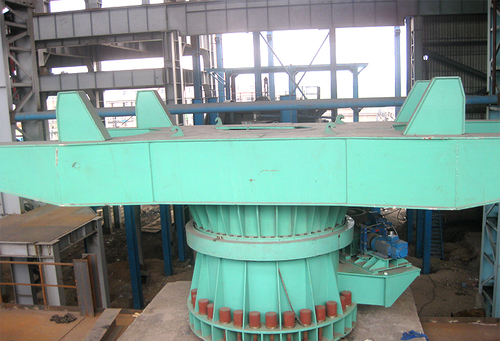

The ladle turret supports and rotates ladles between the receiving and pouring stations. The heavy-duty welded structure of the turret arm and base ensures support for a full ladle of molten steel while also accounting for impact loads. The turret is driven by an AC motor during normal operation and a hydraulic motor during emergency situations.

Technical Data:

Turret Type: Straight Arm

Rotation Radius: ~3800 mm

Load Capacity: Max. 100 t x 2

Ladle Capacity: 50 t

Rotation Angle: ±180°

Normal Speed: 1 rpm

Emergency Speed: 0.5 rpm

Rotation Motor: 15 kW (AC VFD)

Emergency Drive: Hydraulic
